Description

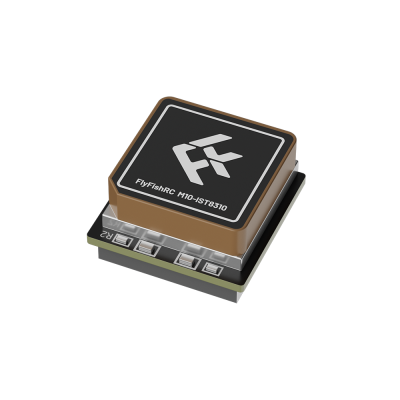

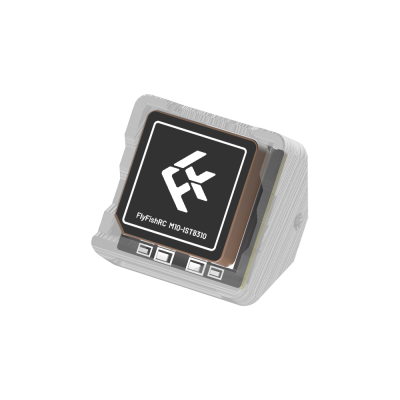

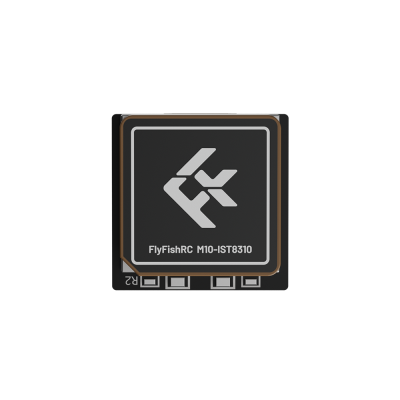

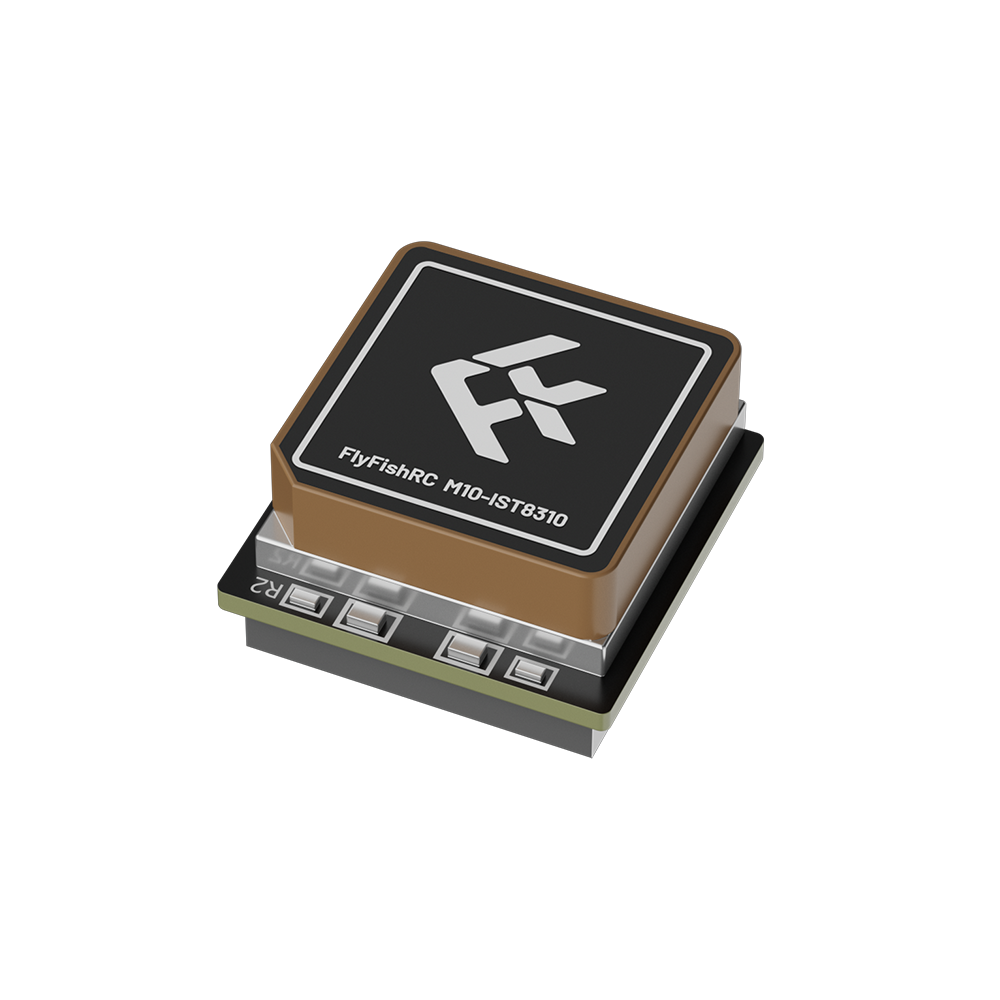

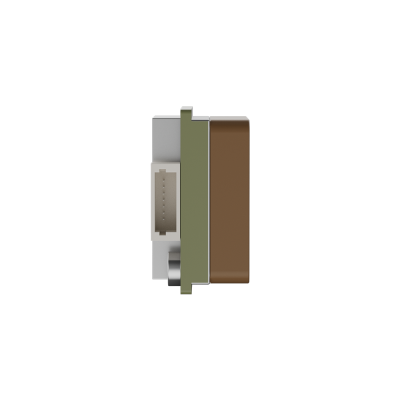

The FlyfishRC M10-IST8310 is a small size, fast positioning, easy-to-use GPS. It adopts 18*18mm RHCP ceramic patch antenna that provides excellent reception capability and a highly stable connectivity. The built-in  M10-IST8310 high-precision magnetometer provides precise azimuth pointing,and the UBLOX10 generation chip allows subtlealtitude changes to be skipped for more stability.Ideal for use with FPV drones, multi-rotors, fixed wing and other model products.

Specs:

GPS Chip:u-blox M10050
Input Voltage:3.3V-5V
Receiving Frequencies:GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
Operating Mode:GPS+BDS+GALILEO+QZSS+SBAS combined positioning
Receiving Channels:72ch
Maximum Navigation Satellites:Up to 32
Output Protocol:UART(ublox),12C(Mag)
Baud Rate:115200bps
Update Rate:10Hz
Velocity Accuracy:0.05m/s
Horizontal Position Accuracy:2D ACC 1.5m (open sky)
Time Accuracy:30 ns
Receiving Sensitivity:Tracking-162dBm,Acquisition-160dBm
Dynamic Characteristics:Max Altitude:50000m,Max Speed:500m/s
Max Acceleration:4G

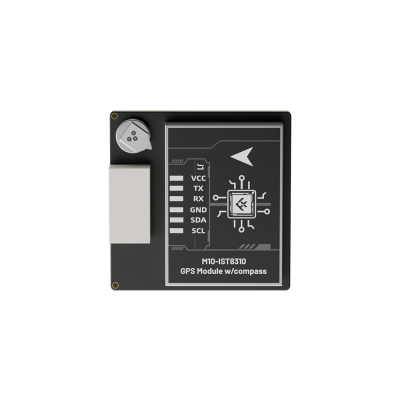

GPS pin definition:RX/TX UART
Compass pin definition:SDA/SCL
GPS patch antenna size:18x18mm

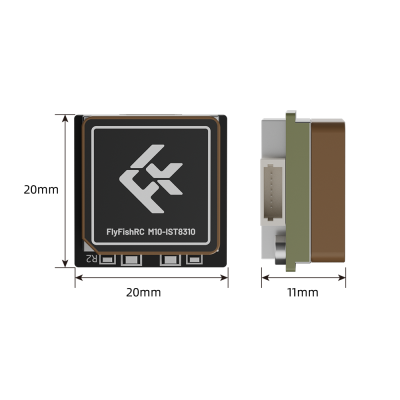

Dimensions:20x20x11mm
Weight:9g

Includes:
1x FlyFishRC M10-IST8310 GPS Module
1x GPS Manual
